Heidelberg MO
(All sizes in mm)
Inkers |
Colour |
Prod Code |
Set Qty |
Roller Dia |
Face Length |
Total Length |
Form Roller, Distributor |
Blue |
HE381 |
2 |
53 |
654.1 |
731.5 |
Form Roller, Distributor, Ductor |
Red |
HE382 |
4 |
51 |
654.1 |
731.5 |
Form Roller, Distributor |
White |
HE380 |
2 |
57 |
654.1 |
731.5 |
Form Roller, Distributor |
Yellow |
HE383 |
2 |
55 |
654.1 |
731.5 |
Total Set Quantity |
|
|
10 |
|
|
|
Oscillating Form Roller (Option) |
Blue |
HE397 |
1 |
53 |
657.9 |
657.9 |
Oscillating Form Roller (Option) |
Red |
HE398 |
3 |
51 |
657.9 |
657.9 |
Oscillating Form Roller (Option) |
White |
HE396 |
1 |
57 |
657.9 |
657.9 |
Oscillating Form Roller (Option) |
Yellow |
HE399 |
1 |
55 |
657.9 |
657.9 |
Hickey Picker (Option) |
White |
HE370R |
1 |
57 |
654.1 |
731.5 |
Conventional Water System |
|
|
|
|
|
|
Water Form Bareback |
Green |
HE387 |
2 |
51 |
662.9 |
731.5 |
Water Form Ductor (Sock) |
Green |
HE389 |
3 |
48 |
674 |
731.5 |
Water Form (Sock) |
|
HE388 |
3 |
48 |
663 |
731.5 |
Water Form Ductor 3M Ref: Sleeve #18522 |
Green |
HE386 |
3-1 |
50 |
662.9 |
731.5 |
Water Form With Trucks |
Green |
HE390 |
2 |
51 |
703.6 |
731.5 |
Alcolor Dampening System |
|
|
|
|
|
|
Alcolor Water Form Roller Complete |
Blue |
HE384 |
1 |
68 |
657.9 |
657.9 |
Alcolor Pan Roller - Complete |
Blue |
HE385 |
1 |
84. |
674.4 |
674.4 |
Bearings |
|
6001 2RS |
|
|
|
|
|
 |
Roller

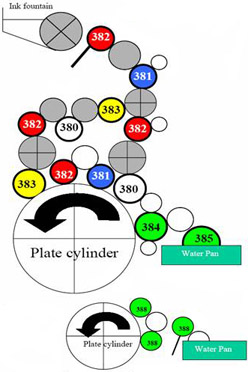

Configuration Diagram |
 |
 |
Alcolor System
Conventional water System
Also uses rollers 386 3M-387T Bareback
A roller fitting service is now available by a skilled technician, with settings adjusted to manufacturers recommendations.
|
|
 |
|
|
|
|
